Indoor Signal Monitor

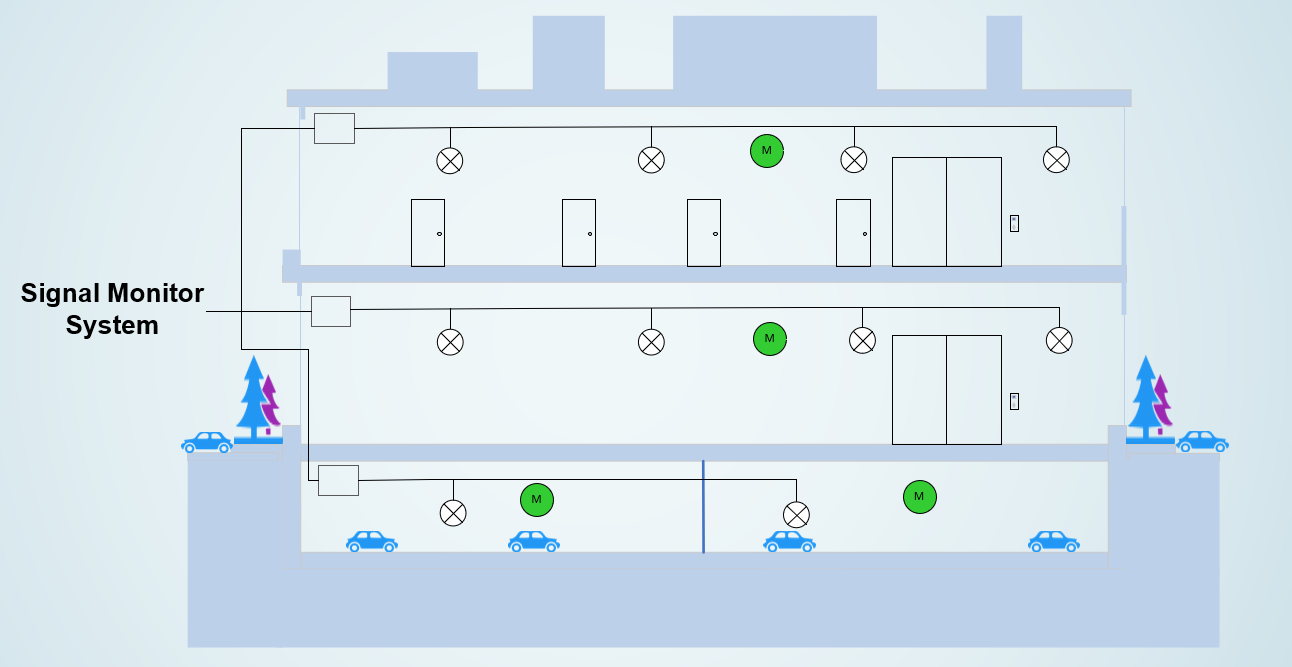

The Indoor Signal Monitoring System is designed for the indoor scenarios including residential buildings, office buildings, commercial buildings, stadiums and train stations. It is used for monitoring the mobile network signal information of telecom operators, transmit the monitored data back to the monitoring center, and support the quality and fault diagnosis of the indoor mobile network system.

性能指标

Item	Parameter
Demodulation Frequrency Bands	4G FDD:B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66 4G TDD:B34/B38/B39/B4/0B41 5G TDD:N2/N5/N12/N13/N14/N25/N66/N71 5G FDD:N41/N48/N77
Demodulation Information	4G: MNC, Band, ARFCN, TAC, PCI, Cell ID (including eNodeB ID), RSRP, RSRQ, SINR 5G: MNC, Band, ARFCN, TAC, PCI, Cell ID (including gNodeB ID), SS-RSRP, SS-RSRQ, SS-SINR
Monitoring Sensitivity	-110dBm≤4G RSRP≤-44dBm; -105dBm≤5G RSRP≤-31dBm
Power Supply Mode	Battery / PoE (Optional)
